Sprayers
[Spare parts]

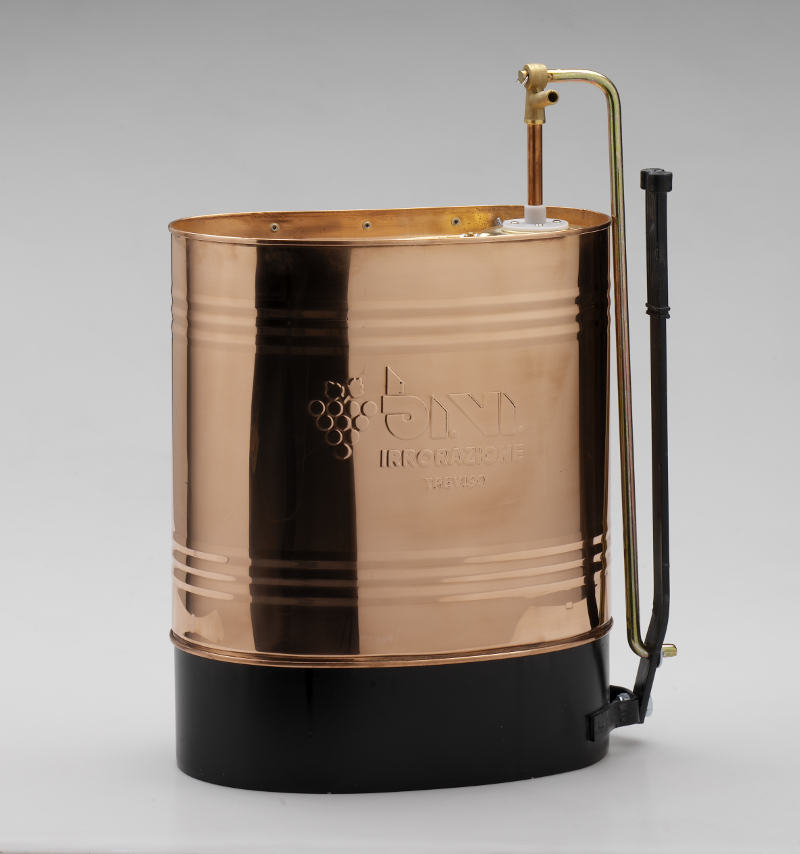

ART. 104 COPPER KNAPSACK SPRAYER MOD. FOLGORE
ART. 106/FPM PRESSURE SPRAYER MOSA MODEL

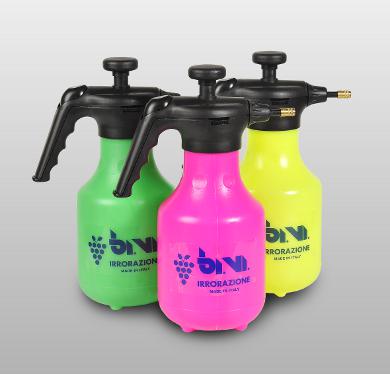

RT. 107 SPRAYER 2 LITERS LUNA MODEL

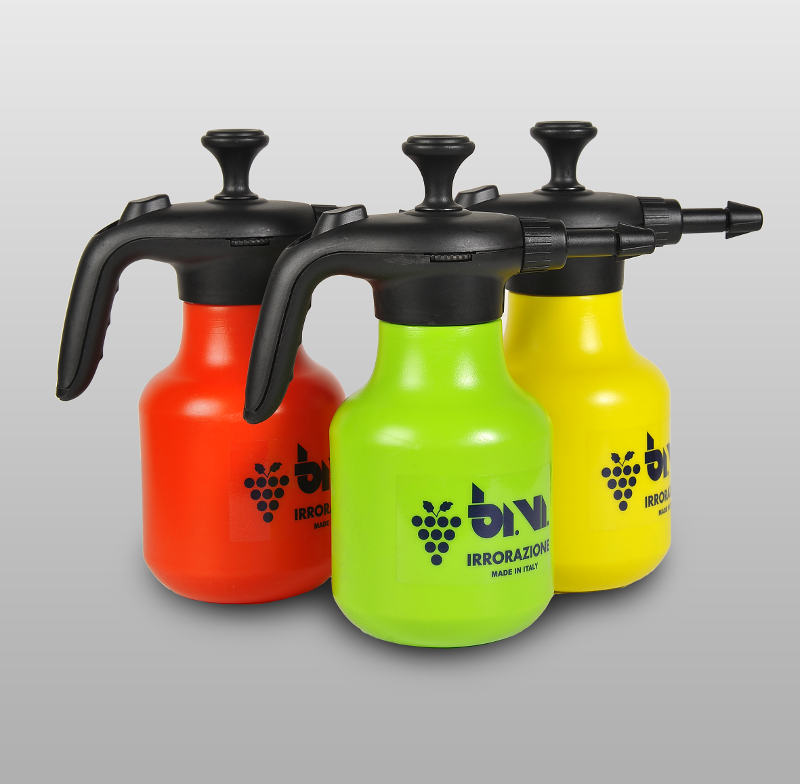

ART. 107A SPRAYER 1,8 LITERS STELLA MODEL

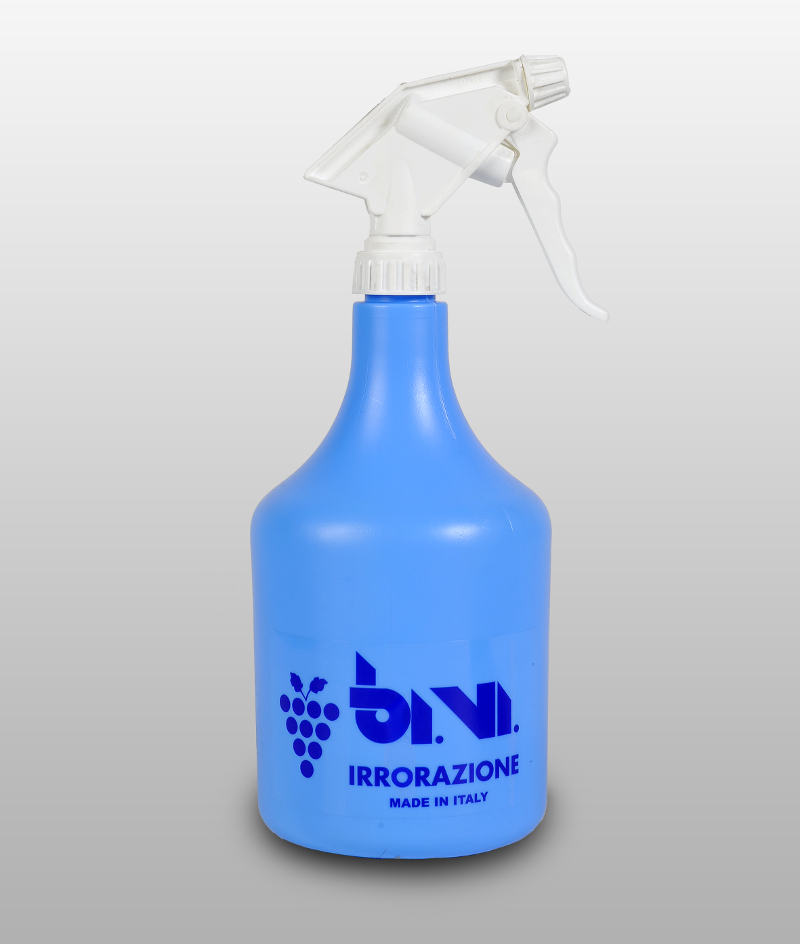

ART. 108 HAND HELD SPRAYER 1 LITER SOLE MODEL

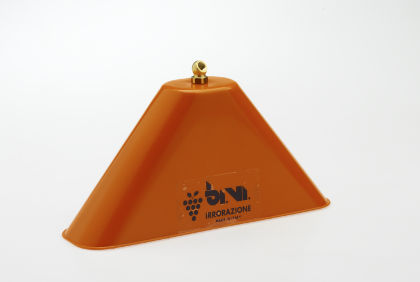

ART. 173.00 HERCIDAL SHIELD

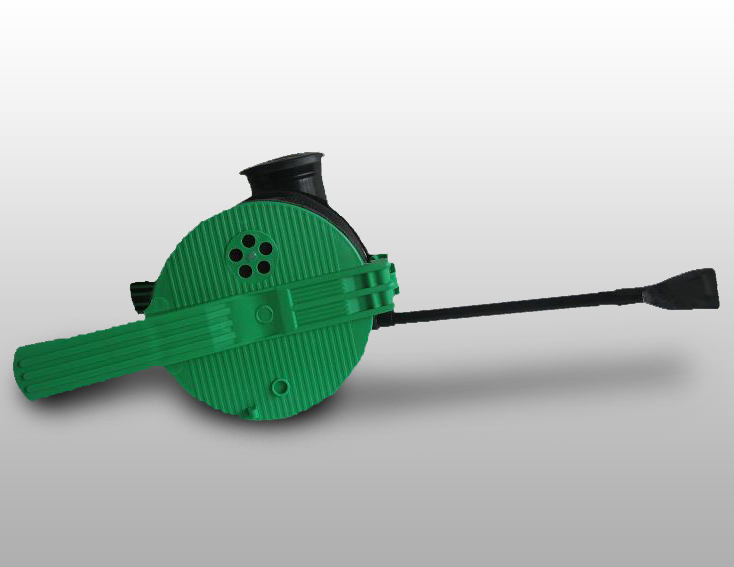

ART. 174.000 HAND BELLOW
Plastic- Copper - Pressure - Battery sprayers
ART. 101 COPPER KNAPSACK SPRAYER EUROPA MODEL
Copper tank and painted metal baseCapacity 16 liters
Equipped with start-up lever on the right or left side as requested
Removable copper pumping unit , weather-resistant, particularly suitable for the use of herbicides and pesticides
Stainless steel valve 11 mm base
Regular work pressure 3 bar max pressure 6 bar
Rubber hose and adjustable straps
Standard equipment: spray gun with filter and ball cock + mignon nozzle
Made in Italy
ART. 105 PLASTIC KNAPSACK SPRAYER MIRO’ MODEL
Blown HD polyethyleneCapacity: 12-15-20 liters
Removable copper pumping unit, weather-resistant particularly suitable for use of herbicides or pesticides
Ring fastener, screw cap
Fiberglass reinforced nylon compression chamber
Fiberglass reinforced feet
Stainless steel valves 11-14 mm
Regular work pressure 3 bar – max pressure 6 bar
Rubber hose and adjustable straps
Range of spray lances and nozzles as shown in the catalogue – if it is used with pesticides a suitable spray lance with regulator is necessary
For optimum maintenance: rinse with water after use
Made in Italy

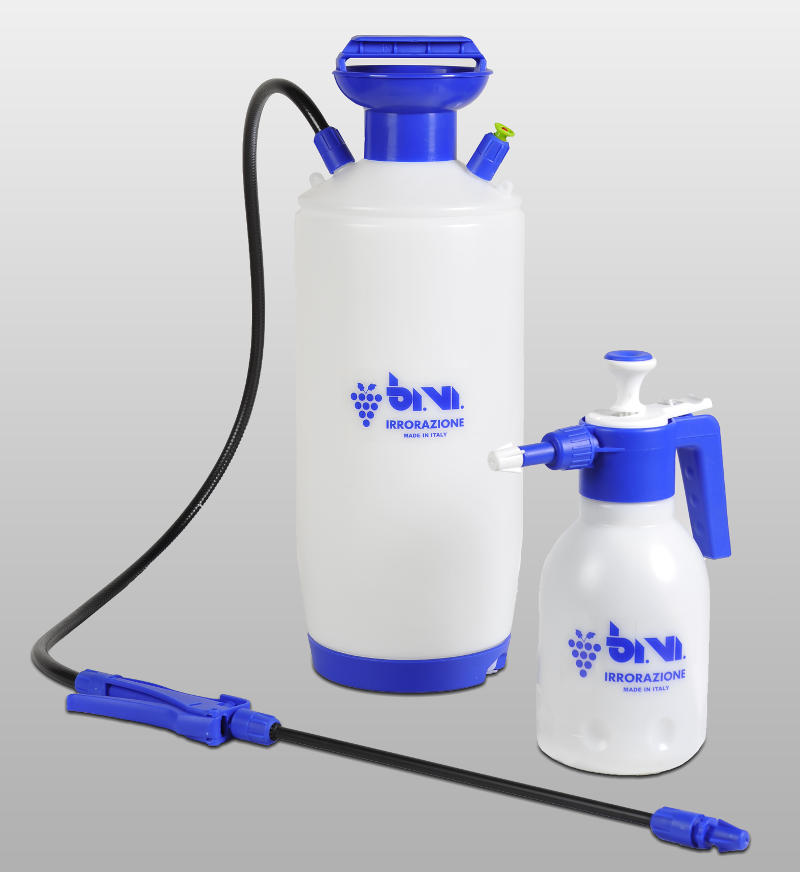

ART. 106 PRESSURE SPRAYER MOSA MODEL
Plastic tank - Capacity 6-8 litersWith discharge valve
Equipped with rubber hose, strap, spray lance and adjustable nozzle
Made in Italy
ART. 120 SELF-DRAWING PUMP LOIRA MODEL
Made in brass, painted iron standTwo stainless-steel valves
Regular work pressure 7-8 bar max pressure 12 bar
Can be used either on buildings to paint with whitewash or (other materials) or in agriculture for special treatments on plants or for farming disinfection
Standard equipment: rubber hose 150 cm, 15 foot strainer, Bivi lever spray gun and conic nozzle
Made in Italy
ART. 172 BATTERY SPRAYER MOD. HIMALAYA
Capacity 16 litersA high/low toggle-switch on the back of the sprayer allowing the control of pressure and spraying volume
Regular work pressure 4 bar
Equipped with battery charger, padded straps, spray gun and three nozzles
